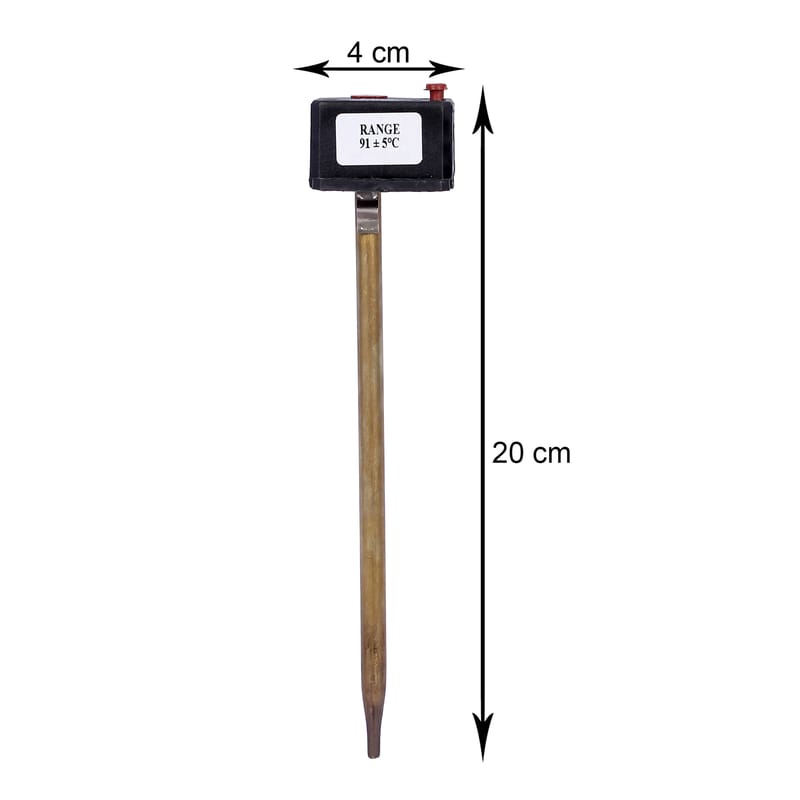

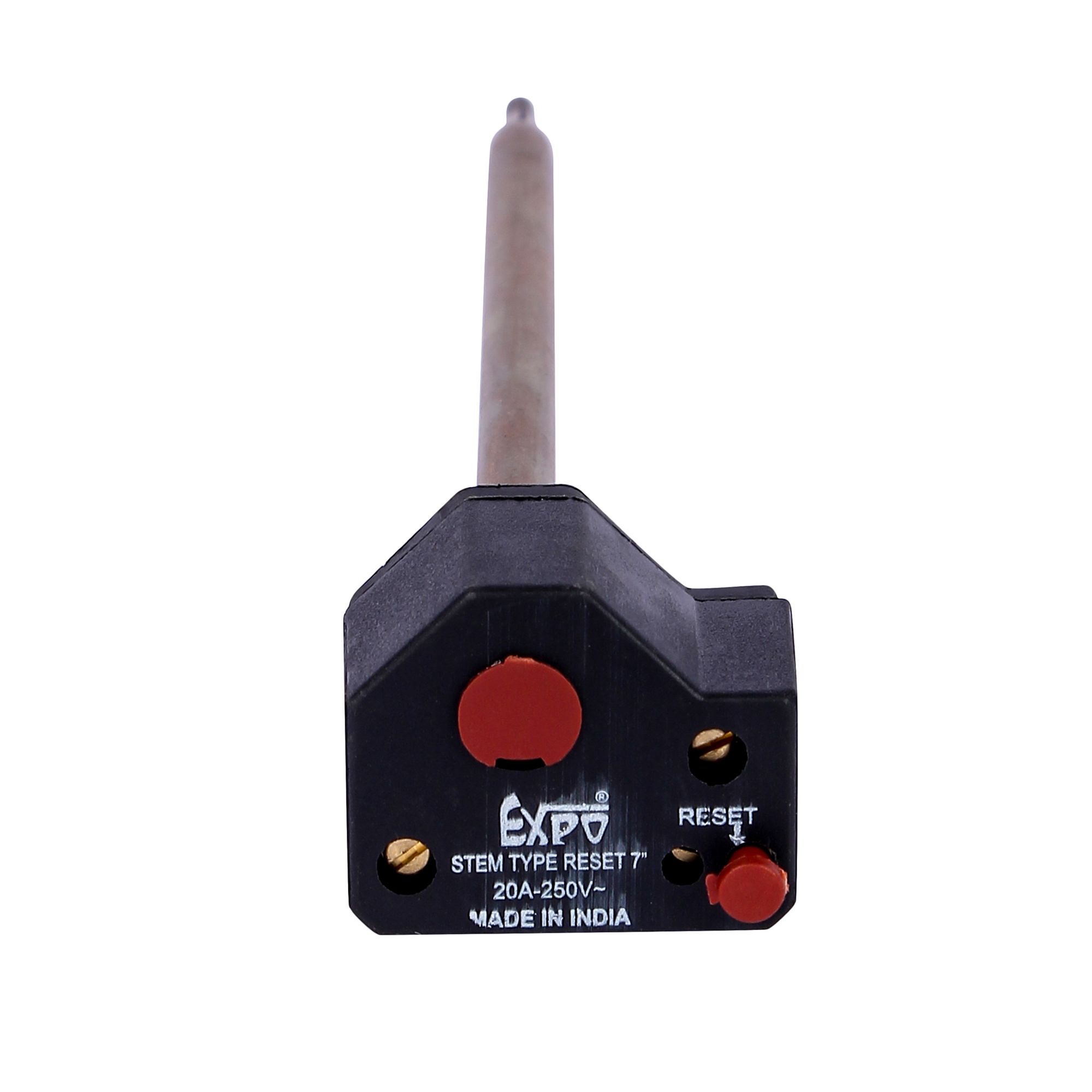

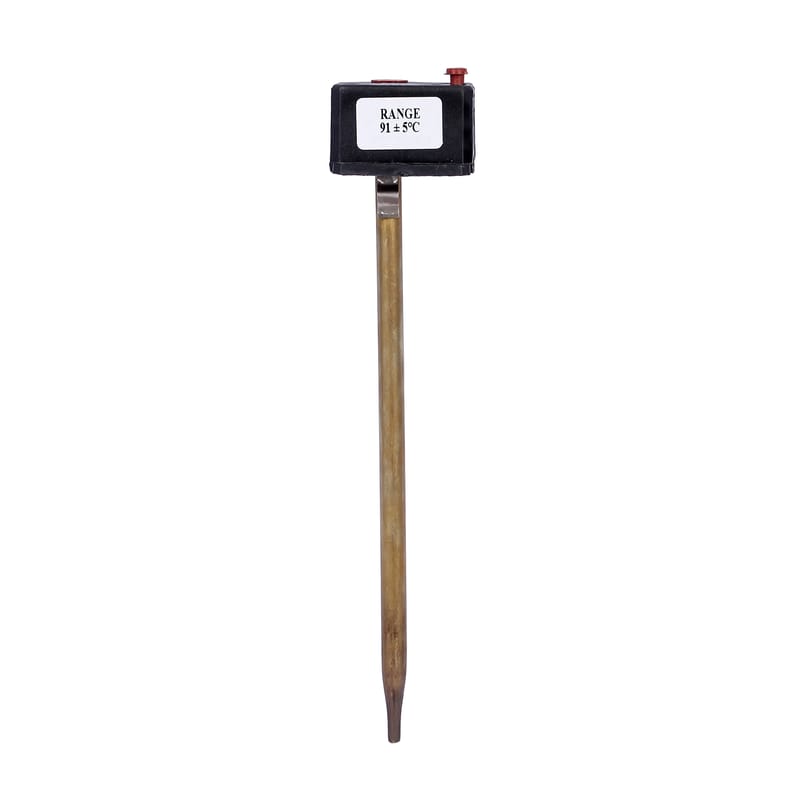

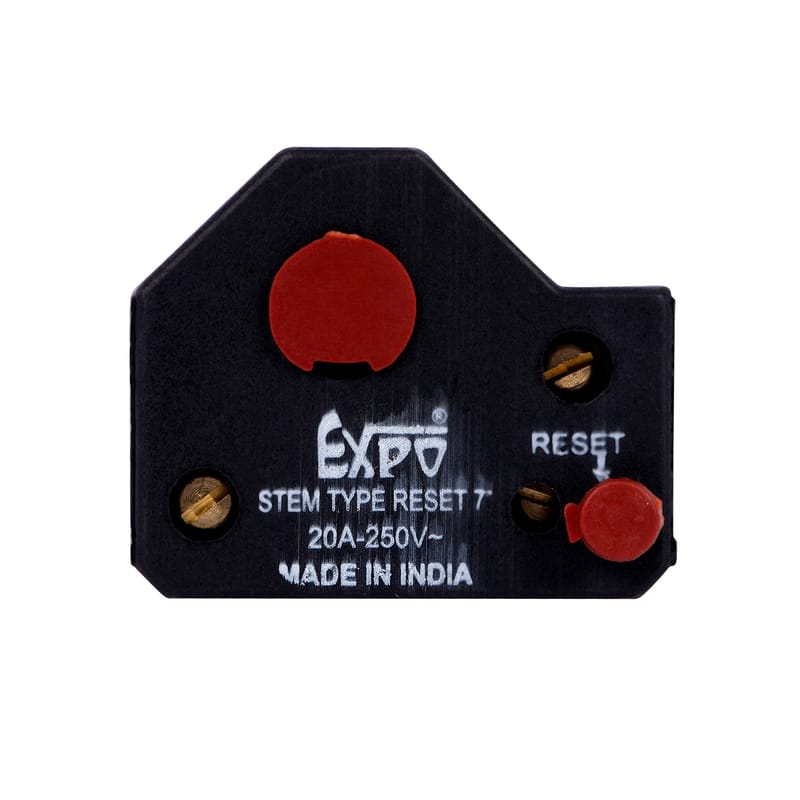

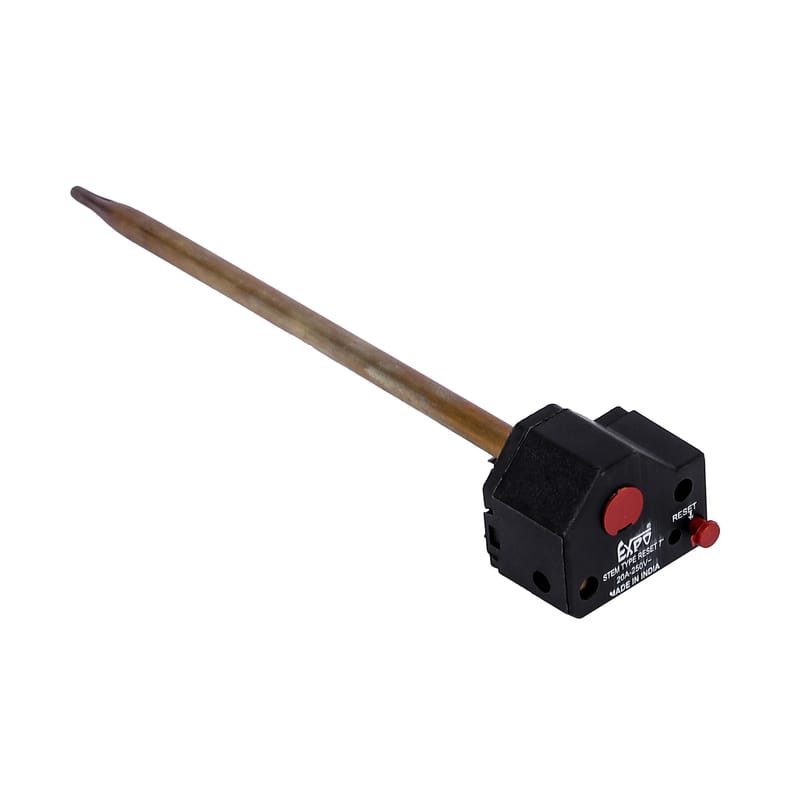

Expo stem type thermostats are very accurate thermostats. These are specially designed for controlling the temperature of geysers, oil and water baths, sterilizers, air ducts, etc. Stem type thermostat operates by opening and closing a snap-action switch in the load circuit. It consists of a brass tubing which is the sensor for operating and as soon as the particular temperature is reached the switch opens and thus switched off the mains supply to the load. When the temperature at the brass tube fall below a certain level the switch makes the contact and the mains supply to the element is restored. In this way the temperature can be set by adjusting the screw. The stem type thermostat consists of a long brass tube with a switching mechanism on one side. The switching mechanism is placed inside a highly insulating and electrical resistant phenolic cover. The temperature marking is done on a dial plate. The screw with arrow mark can be adjusted as per requirement.
MRP ₹499
Country of origin | India |
---|---|
Brand | EXPO |
Common name | Electric Water Heater Geyser |
Net Quantity | 1 piece |
Weight | 60 g |
Dimensions | 22*20*2.5 |
Product Dimensions | 4*4*20 |
Manufacturer or packer name | EXPO THERMOCONTROL PRIVATE LIMITED |
Manufacturer or packer address | EXPO THERMOCONTROL PRIVATE LIMITED, Expo Thermocontrols Private Limited, Mangolpuri Industrial Area, New Delhi |
Manufacturing Date | 12/2023 |
contact details consumer care | Email id: [email protected] |
Expo stem type thermostats are very accurate thermostats. These are specially designed for controlling the temperature of geysers, oil and water baths, sterilizers, air ducts, etc. Stem type thermostat operates by opening and closing a snap-action switch in the load circuit. It consists of a brass tubing which is the sensor for operating and as soon as the particular temperature is reached the switch opens and thus switched off the mains supply to the load. When the temperature at the brass tube fall below a certain level the switch makes the contact and the mains supply to the element is restored. In this way the temperature can be set by adjusting the screw. The stem type thermostat consists of a long brass tube with a switching mechanism on one side. The switching mechanism is placed inside a highly insulating and electrical resistant phenolic cover. The temperature marking is done on a dial plate. The screw with arrow mark can be adjusted as per requirement.
