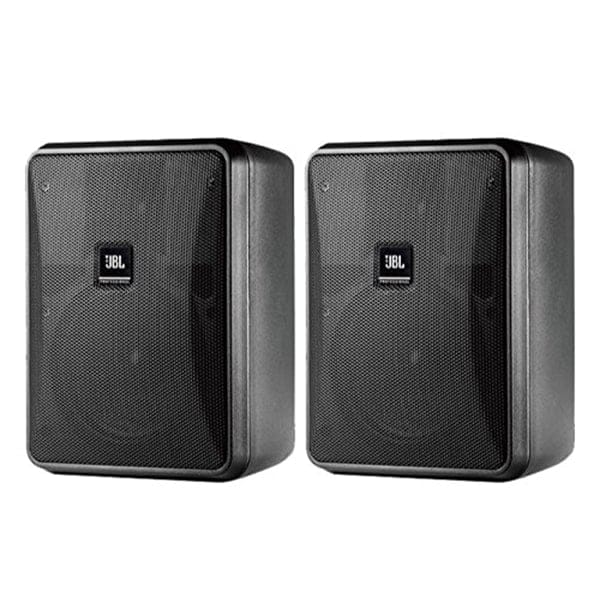

JBL CONTROL 25-1 Compact Indoor Speaker
- Compact Indoor/Outdoor Background/Foreground Speaker
The Control® 25-1 is a two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.
➥ Features
Components:• 5-¼” woofer with woven fiberglass cone• 3/4” PEI diaphragm tweeter with fluid cooling
Contemporary, high-design appearance
Built-in InvisiBall® mounting hardware*, plus available U-bracket
Weather resistant enclosure and transducers
Wide 100° x 100° coverage
100 Watt power handling (200 Watt program) in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer.
High fidelity sound character with broad frequency response of 60 Hz – 20 kHz.
We Only Sell 100% Original, Top-Quality JBL Genuine Products.
We Only Sell 100% Original, Top-Quality JBL Genuine Products.
Specifications
⚡General
Brand: JBL
Model: Control 25-1
Frequency Range: (-10dB) 60 Hz to 20 kHz
Frequency Response: (±3 dB) 85Hz - 17 kHz
Power Rating: 200 W Continuous Program (2 hrs) 100 W (400W peak), Continuous Pink Noise (2 hrs) 75 W (300W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL (1m): 110 dB ave. Continuous Pink Noise (116 dB peak)
Sensitivity: 90 dB, 1W/1m (ave. 100 Hz – 10 kHz)Coverage Angle: 100° x 100°
Directivity Factor (Q): 6.04 (averaged 1kHz – 16kHz)Directivity Index (DI): 7.6dB (averaged 1kHz – 16kHz)
Impedance: 8 ohms (THRU setting)
⚡Product Details
Crossover Type: 2nd order low-pass, 3rd order high-pass
Transformer Taps: 70V: 30W, 15W, 7.5W, 3.7W 100V: 30W, 15W, 7.5W Insertion Loss <0.94 dB at any tap setting Thru Setting: 8Ω nominal
Recommended Protective High-Pass: 60 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
Dimensions (H x W x D): 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight (each): 3.4 kg (7.5 lbs)
1 Year Warranty
